Bridge Tripod Turnstile
The Bridge Tripod Turnstile ZOJE-S406 produced by ZOJE. Compared with other types of turnstile gates, a single tripod turnstile ZOJE-S406 can form a two-direction pedestrian passage, and the passage has excellent anti-tailgating and anti-reversal functions, which can meet basic access control needs.
Model:ZOJE-S406
Send Inquiry
Product Description
ZOJE Bridge Tripod Turnstile is the most cost-effective turnstile, used for areas with medium security needs. This can be indoors or outdoors and withstand severe environment. Can effectively prevent trailing, popular used for Widely used in ticketing places such as tourist attractions.
It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
ZOJE Tripod turnstiles are compact and cost-effective entrance solutions.The body is made of brushed stainless steel 304 or 316 which is robust, rigid, anti-rust and durable.
In case of emergency, the turnstile arm will drop down to allow free passage when power off.
We are also professional customize as your idea or project. Contract with our sales get a professional and suitable solution for you
1.ProductParameter (Specification)
|
|
Standard |
Optional |
|
Turnstile Type |
Bridge Tripod Turnstile |
- |
|
Dimension |
L1200mm*W280mm*H1000mm |
Customized |
|
Material |
304 Stainless Steel |
316 Stainless Steel |
|
Material Thickness |
1.5mm |
1.2mm/1.5mm/2.0mm |
|
Channel Width |
≤500mm |
Customized |
|
Drive Type |
Semi-Automatic(Solenoid) |
Automatic(Brush/Brushless/Servo motor） |
|
Direction |
Single /Bidirectional |
- |
|
Power Supply |
AC110-230,50/60Hz |
- |
|
Operation Voltage |
DC24V,3A |
- |
|
Working environment
|
Indoor & outdoor
|
- |
|
Working Temperature |
-70 C -15 C |
- |
|
Relative Humidity |
Less Than 95%, No Condensation |
- |
|
Pass Speed |
35/Minute |
- |
|
Input Interface |
Dry contact/Relay Signal |
- |
|
CommunicationInterface |
RS485/TCPIP |
- |
|
LED Indicator |
Yes |
- |
|
Emergency |
Arm Drop Automatic |
- |
|
Access Control |
Can be integrated with any kind of access control system. |
|
|
|
2. Product Feature And Application
ZOJE Bridge Tripod Turnstile Feature and application
l Unique technology: HDY hydraulic buffer device.Makes the system run more smoothly, silently, and has a longer service life.
l Equipment With Power Off The Rod, Electric Automatic Rod Function
l The Equipment Has A Device And Circuit Testing Function, Easy Maintenance
l Equipment With Traffic Indicator
l Equipment With Automatic Protection, Automatic Reset
l Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card /EMcard / Fingerprint Face Recognition / QR Code /ESD system)
l ZOJE Tripod Turnstiles widely used inConstructionSites (EmployeeAccessManagementSystem),ScenicSpots (TicketingSystem),Gym (TicketingSystem) and other places, and can be easily integrated with your existing controlsoftware.

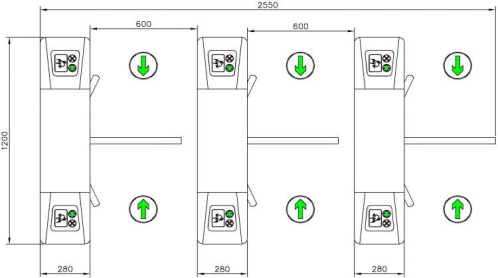

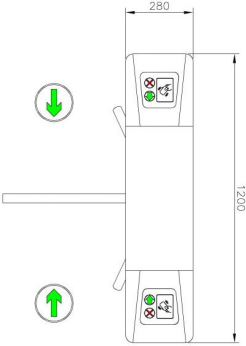

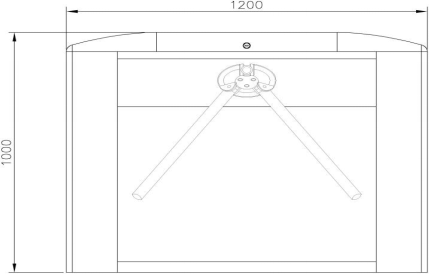

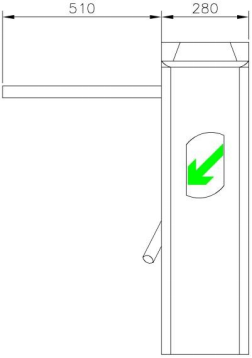

3. Product Details
