Vertical Tripod Turnstile
Vertical Tripod Turnstile gates ZOJE-S206 is a classic style among the tripod turnstiles, with advantages such as high cost performance and excellent space adaptability.Vertical Tripod Turnstiles are compact, flexible, easy to install and remove. Though they are small, but they can offer sufficient space to integrate any access control module.
Model:ZOJE-S206
Send Inquiry
Product Description
Vertical Tripod Turnstile ZOJE-S206
Tripod turnstile gates are widely used for pedestrian flow management when access control is desired but full height security is not required.
As we all know, tripod turnstile gates have better performance in terms of anti-tailgating compared with other series of turnstile gates.
They can be mountedwith display screen, passage counter, IC / ID / RFID card reader, coin or paper ticket collector, direction indicator, command console and all other components.
This kind of tripod turnstile gate is equipped with solenoid magnetic mechanism. In case of power failure or other emergencies, arm will automatically drop for immediate and fast evacuation.
ZOJE-S206 Vertical Tripod Turnstile gates are mostly applied to stadiums, gyms, school libraries, recreation and amusement parks, construction sites, etc.
The cabinet is made of304 stainless steel. 316 stainless steel would be your perfect optional solution for outside use against severe weather conditions.
1.ProductParameter (Specification)
|
|
Standard |
Optional |
|
Turnstile Type |
Vertical Tripod Turnstile |
- |
|
Dimension |
420*330*1000mm (L*W*H) |
Customized |
|
Material |
304 Stainless Steel |
316 Stainless Steel |
|
Channel Width |
≤500mm |
Customized |
|
Drive Type |
Semi-Automatic(Solenoid) |
Automatic(Brush/Brushless/Servo motor） |
|
Direction |
Single /Bidirectional |
- |
|
Power Supply |
AC110-230,50/60Hz |
- |
|
Unlock time |
0.2S |
|
|
Function |
Fail safe |
|
|
Operation Voltage |
DC24V,3A |
- |
|
Working environment
|
Indoor & outdoor
|
- |
|
Working Temperature |
-70 C -15 C |
- |
|
Relative Humidity |
Less Than 95%, No Condensation |
- |
|
Pass Speed |
35/Minute |
- |
|
Input Interface |
Dry contact/Relay Signal |
- |
|
CommunicationInterface |
RS485/TCPIP |
- |
|
LED Indicator |
Yes |
- |
|
Emergency |
Arm Drop Automatic |
- |
|
Access Control |
Can be integrated with any kind of access control system. |
|
|
|
|
|
2. Product Feature And Application
ZOJE-S206 Vertical Tripod Turnstile Feature and application
l Unique technology: HDY hydraulic buffer device.Makes the system run more smoothly, silently, and has a longer service life.
l Equipment With Power Off The Rod, Electric Automatic Rod Function
l The Equipment Has A Device And Circuit Testing Function, Easy Maintenance
l Equipment With Traffic Indicator
l Equipment With Automatic Protection, Automatic Reset
l Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card /EMcard / Fingerprint Face Recognition / QR Code /ESD system)
l ZOJE Vertical Tripod Turnstiles widely used inConstructionSites (EmployeeAccessManagementSystem),ScenicSpots (TicketingSystem),Gym (TicketingSystem) and other places, and can be easily integrated with your existing controlsoftware.

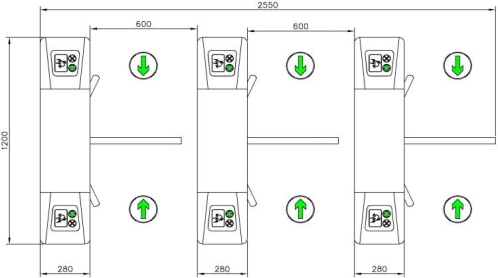

3. Product Details
